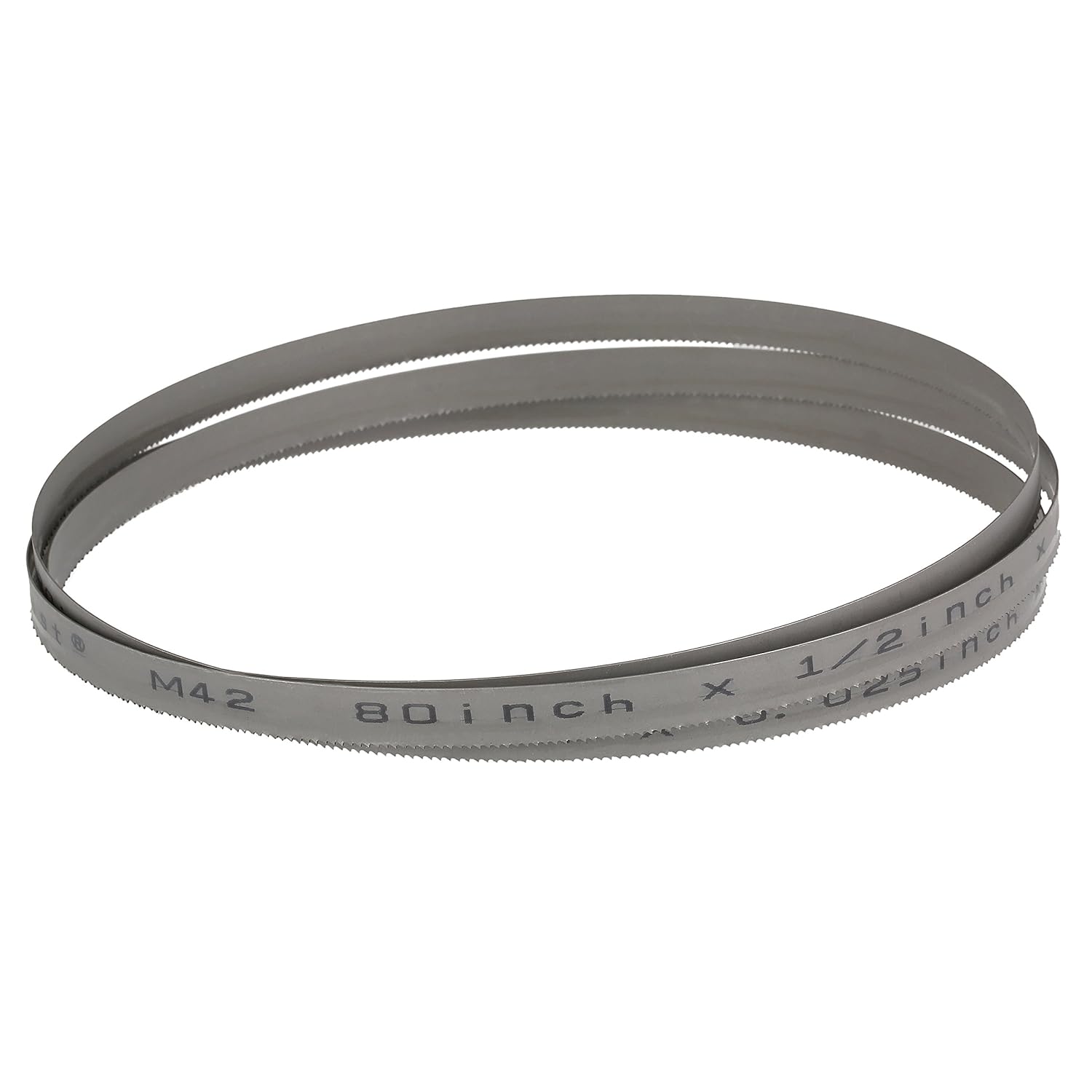

Imachinist S801224 80" x 1/2" x 24TPI Bi-Metal Band Saw Blades M42 Grade for Cutting Soft Ferrous Metal

Promo 40% OFF Imachinist S801224 80 x 1/2 x 24TPI Bi-Metal Band Saw Blades M42 Grade for Cutting Soft Ferrous Metal Reviews

So you can check out the other reviews at Amazon.com

only with $

Material	Bi-metal type, 80" long, 1/2" wide, 24TPI
Brand	Imachinist
Item Dimensions LxWxH	9.45 x 9.45 x 1.18 inches
Item Weight	175 Grams
Compatible Material	Aluminum, Metal
Number of Pieces	1

---

• Bi-metal type, HSS M42 grade, 80" long, 1/2" wide, 0.025" thick, 24TPI
• 24tpi is suitable for cutting ferrous thin pipe tube profiles etc, DON'T cut aluminum or other non-ferrous metal with this 24TPI
• 8% cobalt with 2% tungsten content to increase durability abrasive resistance
• Spring steel backer to strengthen blade life
• Suits all bandsaws which use 80" long, 1/2" wide bandsaw blade

---

Product Description

Imachinist New Bandsaw Blade 80" X 1/2" X 0.025" X 24tpi

Blade Length: 80" or 6'8"

Blade Width: 1/2" or 13 mm

Blade Thickness: 0.025" or 0.65 mm

Blade Teeth: 24tpi (constant pitch)

Teeth Form: null raker

Include: 1 piece of 80" x 1/2" x 0.025" x 24tpi band saw blade

Suitable: for ferrous thin tubing, plate, sheet etc, don't cut non-ferrous metal, like aluminum etc

	Click here for 80", 6/10TPI	Click here for 80", 8/12TPI	Click here for 80", 10/14TPI	Click here for 80", 12/16TPI	Click here for 80", 14TPI for stainless	Click here for 80", 14/18TPI
Blade Length	80 Inch	80 Inch	80 Inch	80 Inch	80 Inch	80 Inch
Blade Width	0.5 Inch	0.5 Inch	0.5 Inch	0.5 Inch	0.5 Inch	0.5 Inch
Blade Thickness	0.025 Inch	0.025 Inch	0.025 Inch	0.025 Inch	0.025 Inch	0.025 Inch
Blade Teeth	6/10TPI	8/12TPI	10/14TPI	12/16TPI	14TPI	14/18TPI
Pitch	variable pitch	variable pitch	variable pitch	variable pitch	constant pitch	variable pitch
Suitable for	aluminum, copper, brass etc and other non-ferrous metal	ferrous thick tubing, profile, sheet, plate etc	ferrous thick tubing, profile, sheet, plate etc	ferrous thin tubing, sheet, plate, profile etc	stainless steel	ferrous thin tubing, sheet, plate, profile etc
SKU	S8012610	S8012812	S80121014	S80121216	S801214SS	S80121418

Cold Rolling

We use imported cold rolling machine to cold roll the band saw blade strip

Milling

We use imported milling machine to mill teeth for the blade, making sure teeth are sharp and durable while cutting metal

Heat Treatment

With heat treating on the imported heat treatment machines, the teeth are more hard, more tensive to resist hit and power from the metal. Blade are more durable after heat treating.

Welding

The last step is welding the blade after cutting it to correct size, the welding joint looks much perfect after welding it on high quality imported welding machine, blade life could improve a lot.

Cold Rolling

Milling

Heat Treatment

Welding

Metalworking Type Bi-metal blade is designed for metalworking, ideal for metalworking craftman, blacksmith, mechanic etc.	Compatibility Accurate length with high performance, compatible with most bandsaws with more choices on teeth pitch.	Ideal DIY Tools Bi-metal type, M42 grade, 8% cobalt with 2% tungsten, much more fatigue resistant and durable on metal.	Blade Life Spring steel backer strengthens blade life, hardened edges to cut metal straightly with ease, blade works with high performance.

Read more

Welding Joint We weld blades with high performance welding machine to make sure welding joint looks perfect.	Teeth Direction Default teeth direction is rightward, if you want leftward direction, please twist the blade from inside to outside.	Original Package Brand new with original package for this blade with tips behind blade pacakge to help customers.

Read more

How to Improve Life

• Blade installation is the first step, make sure teeth is shown outside the guide, and blade strip is clamped tightly inside the guide.
• Teeth direction should be the same with the direction of wheel rotation, twist the blade from inside to outside if teeth direction is opposite.
• Running-in is required when blade cuts metal for the first time. It's important for blade life. During running-in, cutting speed should be 1/3 of normal speed, feed should be 1/4 of normal feed. Usually, after the blade cuts the first several pieces, like 5-10 pieces, adjust cutting speed and feed gradually to normal speed according relative parameters and your metal.
• Blade tension will be different for differnt wide blades, as time goes on, blade tension will be reduced by the bandsaw and blade stretch, make sure the blade is correct tension, our recommended blade tension is 300N/mm2.
• Coolant will be useful to cool and lubricate blade and teeth during cutting, better coolant could avoid overheat on the teeth of the blade, and reduce friction between the blade and the metal you cut.
• Teeth selection is also important, here are our experience:

1. big variable teeths (like 3/4TPI, 4/6TPI, 5/8TPI) are for cutting ferrous solid rod with big diameter;
2. big constant teeth (like 6TPI) is for cutting ferrous solid rod with small diameter;
3. big variable teeth (like 6/10TPI) is for cutting aluminum, copper, brass etc and other non-ferrous metal;
4. middle variable teeths (like 8/12TPI, 10/14TPI) are for ferrous thick tubing, profile, sheet, plate etc;
5. small constant teeth (14TPI) is for general purpose;
6. small variable teeths (like 12/16TPI, 14/18TPI) is for ferrous thin tubing, sheet, plate, profile etc;
7. small constant teeth (24TPI) is for ferrous thin tubing, plate, sheet etc, don't cut non-ferrous metal, like aluminum etc.

---

Specifications for this item

Brand Name	Imachinist
Compatible Material	Metal , Aluminum
Extension Length	Bi-metal band saw blade 80" long, 1/2" wide
Item Weight	6.2 ounces
Material	Bi-metal type, 80" long, 1/2" wide, 24TPI
Part Number	IM801224
Specification Met
UNSPSC Code	27110000

---
